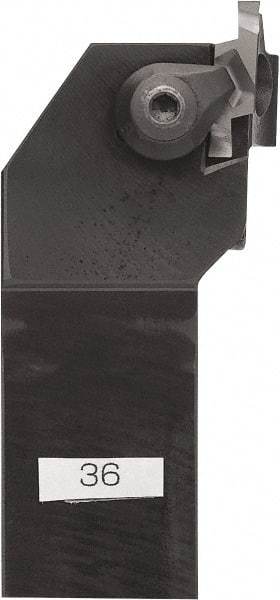

Kyocera - GFVS, External, Left Hand, 0.18" Max Depth of Cut, 2.4892 to 5.9944mm Groove Width, Indexable Grooving Tool Holder - GVF... B, GVF... BR Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 50395565
Brand: Kyocera
Model #: 8837074
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Minimum Groove Width (Decimal Inch) | 0.0980 |
| Minimum Groove Width (mm) | 2.49 |
| Maximum Groove Width (mm) | 5.99 |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | GFVS |
| Insert Compatibility | GVF... B; GVF... BR |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | GFVS |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 35.05 |
| Minimum Hole Diameter (Decimal Inch) | 1.3800 |
| Maximum Hole Depth (Decimal Inch) | 1.2600 |
| Maximum Bore Depth (Decimal Inch) | 1.2600 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Height (Decimal Inch) | 1.3550 |
| Head Length (Decimal Inch) | 1.2600 |
| Shank Length (Decimal Inch) | 4.7400 |
| Manufacturers Catalog Number | GFVSL16351B |
| Height to Shank Top (Decimal Inch) | 1.0000 |
| Complete Insert Compatibility | GVFL/R 150BR; GVFL/R 250B to 350B |
| Minimum Bore Diameter (Decimal Inch) | 1.3800 |
| Minimum BoreDiameter (mm) | 35.00 |
