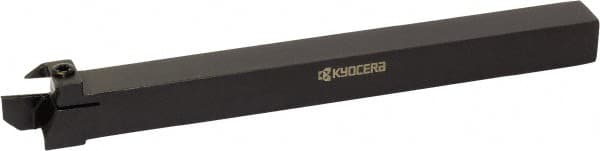

Kyocera - KGM, External, Right Hand, 8mm Max Depth of Cut, 3 to 3mm Groove Width, Indexable Grooving Tool Holder - Multiple Insert Compatibility, 12mm Shank Height, 12mm Shank Width, 100mm OAL
Item #: 50394683
Brand: Kyocera
Model #: 8806360
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Toolholder Style | KGM |
| Insert Compatibility | GM..; GM.. 1520..; GM.. 2020..; GM.. 2420..; GM.. 2520..; GM.. 3020..; GM.. 3520..; GM.. 4020..; GM.. 5020..; GM.. 6020..; GM.. 8030..; GM.. TK.. |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Series | KGM |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving |
| Insert Holding Method | Screw |
| igrvh Maximum Bore Depth (mm) | 27.00 |
| Back of Bar to Cutting Edge (mm) | 7.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3071 |
| Head Height (Decimal Inch) | 0.6693 |
| Head Height (mm) | 17.00 |
| Head Length (mm) | 27.00 |
| Head Length (Decimal Inch) | 1.0630 |
| Shank Length (mm) | 73.00 |
| Shank Length (Decimal Inch) | 2.8740 |
| Manufacturers Catalog Number | KGMR1212H3 |
| Complete Insert Compatibility | GMG 2520-030MG; GMG 3020-000MS; GMG 3020-020MS; GMG 3020-030MG; GMG 3020-040MS; GMG 3020-150R; GMG 3020-150RU; GMG 3520-030MG; GMG 4020-020MS; GMG 4020-040MG; GMG 4020-040MS; GMG 4020-080MS; GMG 4020-200R; GMG 4020-200RU; GMG 5020-040MG; GMG 5020-040MS; G |
