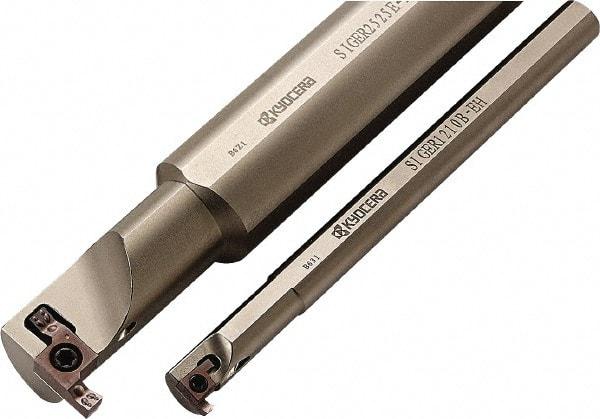

Kyocera - Sige, Internal, Left Hand, 2.2mm Max Depth of Cut, 0.039 to 0.197" Groove Width, Indexable Grooving Tool Holder - Multiple Insert Compatibility, 9mm Shank Width, 140mm OAL, Through Coolant
Item #: 50394568
Brand: Kyocera
Model #: 8831095
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Maximum Depth of Cut (mm) | 2.20 |
| Minimum Groove Width (Decimal Inch) | 0.0390 |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Toolholder Style | Sige |
| Insert Compatibility | GE.. 031..; GE.. 041..; GE.. 047..; GE.. 058..; GE.. 062..; GE.. 072..; GE.. 078..; GE.. 088..; GE.. 094..; GE.. 097..; GE.. 100..; GE.. 105..; GE.. 110..; GE.. 120..; GE.. 122..; GE.. 125..; GE.. 140..; GE.. 145..; GE.. 150..; GE.. 170..; GE.. 185..; GE. |
| Shank Width/Diameter (mm) | 9.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3543 |
| Series | Sige |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Coolant Hole Diameter (mm) | 3.00 |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (mm) | 12.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.4724 |
| igrvh Maximum Bore Depth (mm) | 45.00 |
| Center to Cutting Edge (mm) | 7.00 |
| Center to Cutting Edge (Decimal Inch) | 0.2756 |
| Head Length (mm) | 45.00 |
| Head Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 95.00 |
| Shank Length (Decimal Inch) | 3.7402 |
| Manufacturers Catalog Number | SIGEL1210BWH |
| Complete Insert Compatibility | GER 100-050BR; GER 200-100BR; GER/L 031-002B; GER/L 041-002B; GER/L 047-002B; GER/L 058-002B; GER/L 062-004B; GER/L 072-004B; GER/L 078-004B; GER/L 088-004B; GER/L 094-004B; GER/L 097-004B; GER/L 100-005B; GER/L 105-008B; GER/L 110-008B; GER/L 120-005B; G |
| Minimum BoreDiameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
