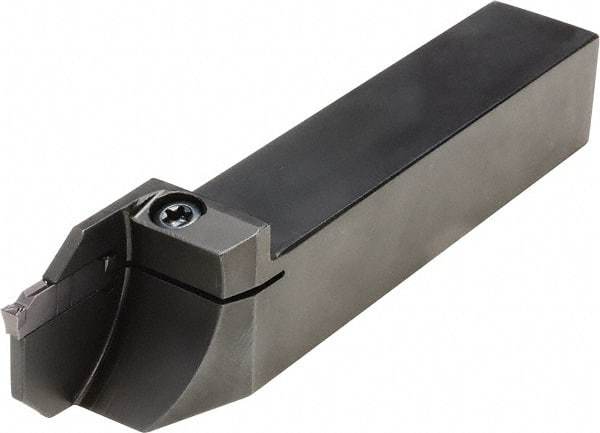

Kyocera - KGD, External, Right Hand, 30mm Max Depth of Cut, 3 to 4mm Groove Width, Indexable Grooving Tool Holder - Multiple Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 120mm OAL
Item #: 50394469
Brand: Kyocera
Model #: 8837969
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Maximum Depth of Cut (mm) | 30.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Toolholder Style | KGD |
| Insert Compatibility | GD.. 2020N..; GD.. 2020R..; GD.. 2220N..; GD.. 2420N..; GD.. 2520N..; GD.. 2520R..; GD.. 3020N..; GD.. 3020R..; GD.. 3520N..; GD.. 4020N..; GD.. 4020R..; GD.. 5020N..; GD.. 6020N..; GD.. 8030N.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | KGD |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving |
| Insert Holding Method | Screw |
| igrvh Maximum Bore Depth (mm) | 29.00 |
| Back of Bar to Cutting Edge (mm) | 14.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5827 |
| Head Height (Decimal Inch) | 0.8071 |
| Head Height (mm) | 20.50 |
| Head Length (mm) | 29.00 |
| Head Length (Decimal Inch) | 1.1417 |
| Shank Length (mm) | 149.00 |
| Shank Length (Decimal Inch) | 5.8661 |
| Manufacturers Catalog Number | KGDR1616JX3D38 |
| Complete Insert Compatibility | GDG 2520N-020GS; GDG 3020N-020GS; GDG 3520N-020GS; GDG 4020N-040GS; GDG 5020N-040GS; GDG 6020N-040GS; GDM 2020N-020PH; GDM 2420N-020GL; GDM 2420N-020GM; GDM 3020N-020GL; GDM 3020N-020GM; GDM 3020N-030PH; GDM 3020N-040GL; GDM 3020N-040GM; GDM 3020N-150R-CM |
