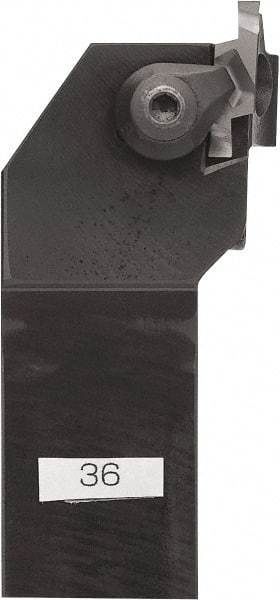

Kyocera - GFVS, External, Right Hand, 8.1026mm Max Depth of Cut, 2.4892 to 5.9944mm Groove Width, Indexable Grooving Tool Holder - GVF... C Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 50393370
Brand: Kyocera
Model #: 8810958
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3190 |
| Maximum Depth of Cut (mm) | 8.10 |
| Minimum Groove Width (Decimal Inch) | 0.0980 |
| Minimum Groove Width (mm) | 2.49 |
| Maximum Groove Width (mm) | 5.99 |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | GFVS |
| Insert Compatibility | GVF... C |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | GFVS |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| igrvh Maximum Bore Depth (mm) | 32.00 |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Height (Decimal Inch) | 1.3976 |
| Head Height (mm) | 35.50 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Shank Length (mm) | 118.00 |
| Shank Length (Decimal Inch) | 4.6457 |
| Manufacturers Catalog Number | GFVSR2525M502C |
| Complete Insert Compatibility | GVFL/R 500 to 600-040C |
| Minimum BoreDiameter (mm) | 50.00 |
