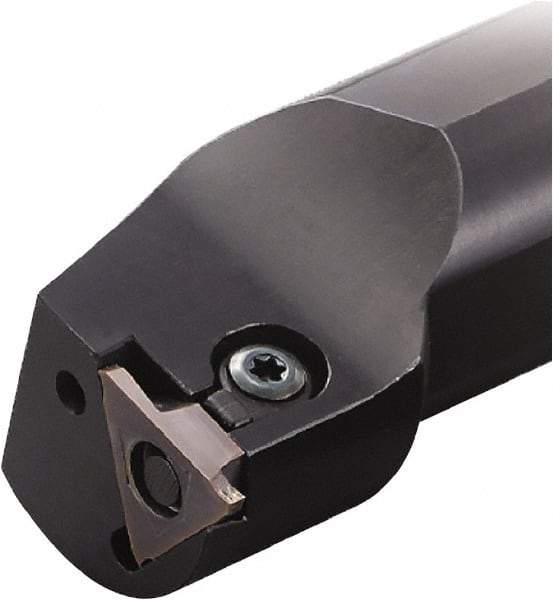

Kyocera - KIGBA, Internal, Left Hand, 3mm Max Depth of Cut, 0.02 to 0.19" Groove Width, Indexable Grooving Tool Holder - GBA43R/L.. Insert Compatibility, 30mm Shank Width, 250mm OAL
Item #: 50393008
Brand: Kyocera
Model #: 8809730
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.0200 |
| Maximum Groove Width (Decimal Inch) | 0.1900 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Toolholder Style | KIGBA |
| Insert Compatibility | GBA43R/L.. |
| Shank Width/Diameter (mm) | 30.00 |
| Shank Width/Diameter (Decimal Inch) | 1.1811 |
| Series | KIGBA |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| igrvh Maximum Bore Depth (mm) | 30.00 |
| Center to Cutting Edge (mm) | 23.00 |
| Center to Cutting Edge (Decimal Inch) | 0.9055 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Shank Length (mm) | 220.00 |
| Shank Length (Decimal Inch) | 8.6614 |
| Manufacturers Catalog Number | KIGBAL403222 |
| Complete Insert Compatibility | GBA43R/L 031N; GBA43R/L 031R; GBA43R/L 047N; GBA43R/L 062N; GBA43R/L 072N; GBA43R/L 078MYN; GBA43R/L 078N; GBA43R/L 088N; GBA43R/L 125-010; GBA43R/L 125-020; GBA43R/L 140-020; GBA43R/L 145-020; GBA43R/L 150-010; GBA43R/L 150-020; GBA43R/L 170-020; GBA43R/ |
| Minimum BoreDiameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.00 |
