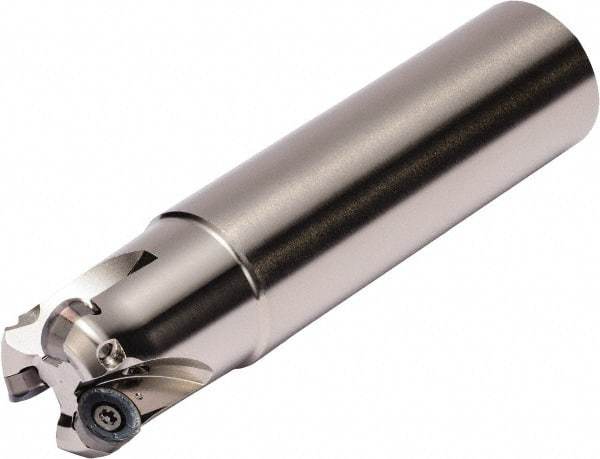

Kyocera - 50mm Cutting Diam, 42mm Shank Diam, 6mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 4 Inserts, RPGT 12, RPMT 12 Insert, MRX Toolholder
Item #: 50391911
Brand: Kyocera
Model #: 8839169
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.968504 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 42.00 |
| Shank Diameter (Decimal Inch) | 1.653543 |
| Number of Cutter Inserts | 4 |
| Insert Style | RPGT 12; RPMT 12 |
| Toolholder Style | MRX |
| Series | RAD-6 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| ISO Number | MRX50-S42-12-4T-300 |
