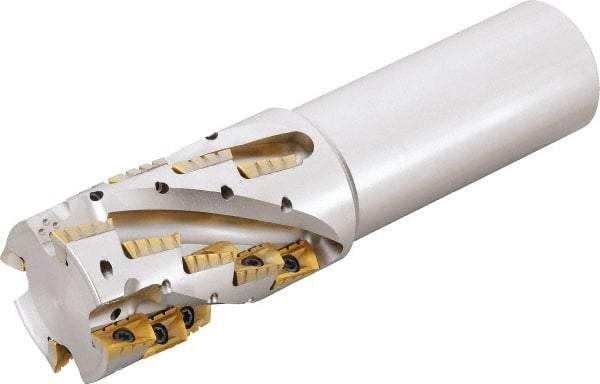

Kyocera - 50mm Cut Diam, 74mm Max Depth of Cut, 42mm Shank Diam, 185mm OAL, Indexable Square Shoulder Helical End Mill - BDMT 170408ER-N3, BDMT 170408ER-N4 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50388503
Brand: Kyocera
Model #: 8824455
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 42.00 |
| Shank Diameter (Decimal Inch) | 1.6535 |
| Overall Length/Projection (mm) | 185.00 |
| Overall Length/Projection (Decimal Inch) | 7.2835 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 74.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.913386 |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | MECH |
| Number of Flutes | 4 |
| Head Length (mm) | 88.00 |
| Head Length (Decimal Inch) | 3.4646 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 170408ER-N3; BDMT 170408ER-N4 |
| Shank Length (Decimal Inch) | 3.8189 |
| Shank Length (mm) | 97.00 |
