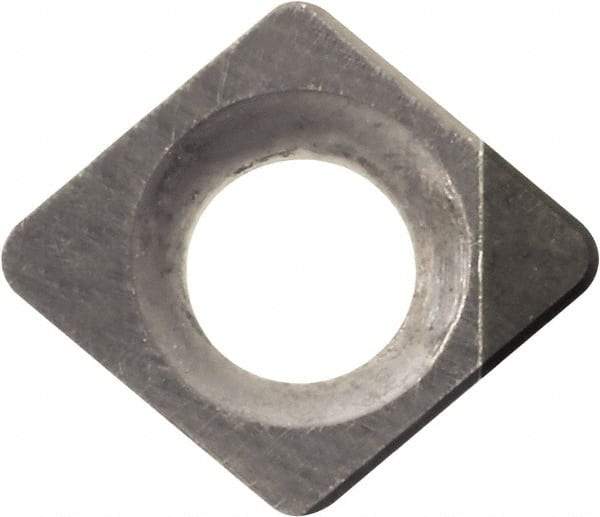

Kyocera - CCMW11091 Grade KBN10M CBN Turning Insert - Megacoat Finish, 80° Diamond, 3.5052mm Inscr Circle, 1.397mm Thick, 1/64" Corner Radius
Item #: 50387083
Brand: Kyocera
Model #: 8826770
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CCMW |
| Insert Size | 11091 |
| Material | CBN |
| Inscribed Circle (mm) | 3.51 |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Thickness (Decimal Inch) | 0.0550 |
| Thickness (mm) | 1.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KBN10M |
| Coating | Megacoat |
| Hole Diameter (mm) | 1.91 |
| Hole Diameter (Decimal Inch) | 0.0750 |
| ISO Number | CCMW030104S01035SET |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | CCMW11091S00435SET |
| Primary Workpiece Material | H |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered & Honed |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
