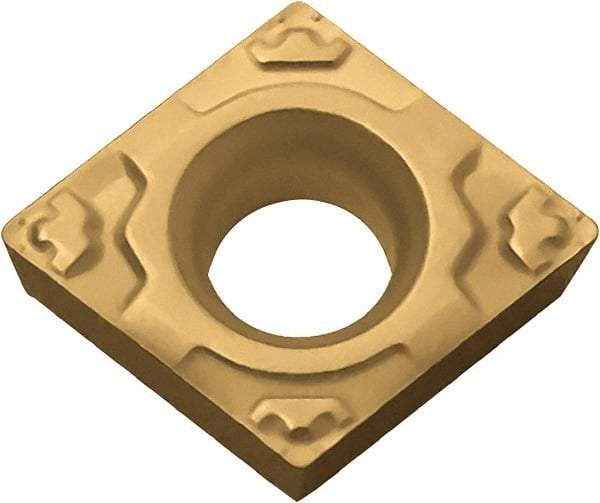

Kyocera - CPMT322 GP Grade CA530 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 50383660
Brand: Kyocera
Model #: 8840350
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMT |
| Insert Size | 322 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | CA530 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | GP |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | CPMT090308GP |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CPMT322GP CA530 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
