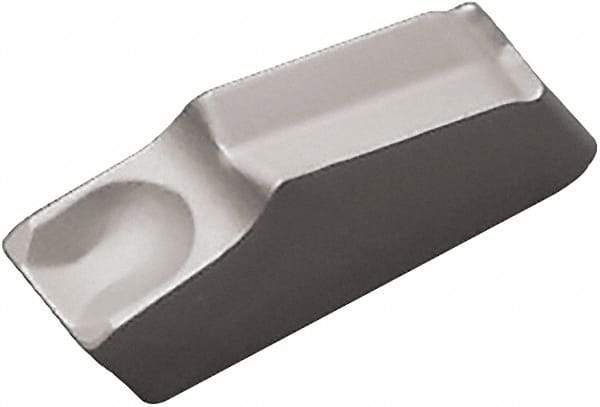

Kyocera - TK S CR9025 Grade, 0.0945" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0079" Cnr Rad, TiCN/TiN Coated
Item #: 50381052
Brand: Kyocera
Model #: 8802944
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TK |
| Insert Size | 2.40 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 2.40 |
| Cutting Width (Decimal Inch) | 0.0945 |
| Manufacturer's Grade | CR9025 |
| Coating | TiCN/TiN |
| Series | TK |
| Chipbreaker | S |
| Full Radius | No |
| Multi-Use Application | Cut-Off |
| Coating Process | CVD |
| Corner Radius (Decimal Inch) | 0.007874 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Width Tolerance | 0.05 (mm) |
| Manufacturers Catalog Number | TKN2.4 |
