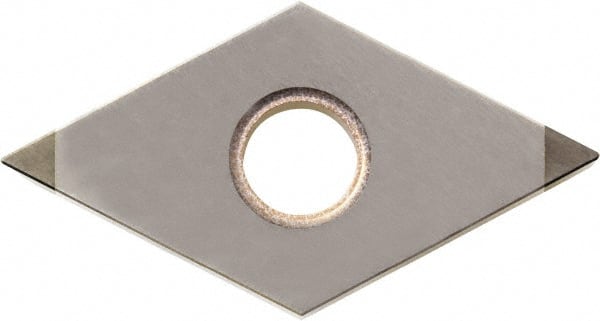

Kyocera - DNGA433T00515ME KBN70M CBN Turning Insert
Item #: 50376813
Brand: Kyocera
Model #: 8828585
Product Specifications
| Insert Style | DNGA |
| Insert Size | 433 |
| Material | CBN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KBN70M |
| Coating | Megacoat |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | DNGA150412T01215ME |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | DNGA433T00515ME KBN70M |
| Primary Workpiece Material | K |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 3/64 |
| Shape | Diamond |
