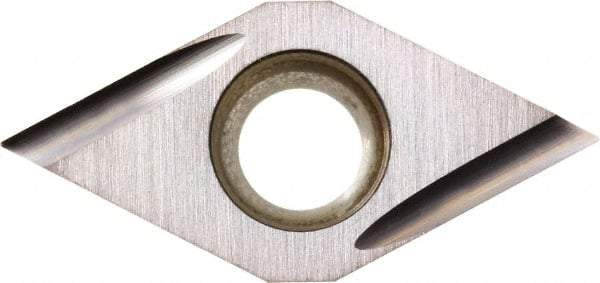

Kyocera - DCGT21.50.1 U Grade KW10 Carbide Turning Insert - Uncoated, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.001" Corner Radius
Item #: 50364934
Brand: Kyocera
Model #: 8817598
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 21.50.1 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0010 |
| Manufacturer's Grade | KW10 |
| Coating | Uncoated |
| Material Grade | K10 |
| Chip Breaker | U |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | DCGT0702003FR-U |
| Rake | Positive |
| Rake Angle | 30 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | DCGT21501FRU KW10 |
| Primary Workpiece Material | N |
| Included Angle | 55 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
