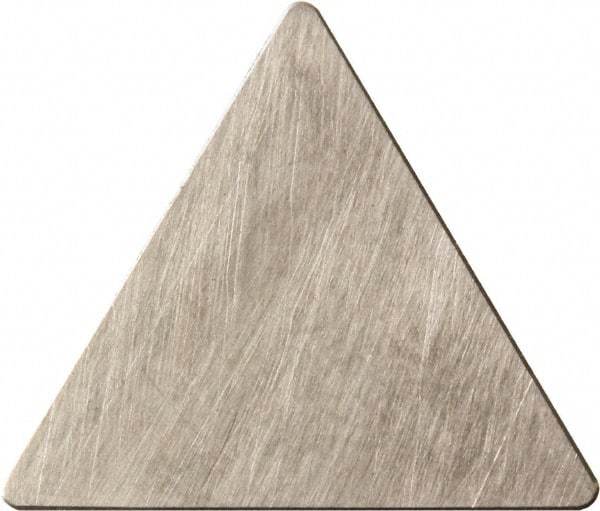

Kyocera - TPG1.81.51 Grade KW10 Carbide Turning Insert - Uncoated, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 50362656
Brand: Kyocera
Model #: 8815086
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPG |
| Insert Size | 1.81.51 |
| Material | Carbide |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KW10 |
| Coating | Uncoated |
| Material Grade | K10 |
| ISO Number | TPGN090204 |
| Rake | Positive |
| Relief Angle | 11 |
| Manufacturers Catalog Number | TPG18151 KW10 |
| Primary Workpiece Material | N |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
