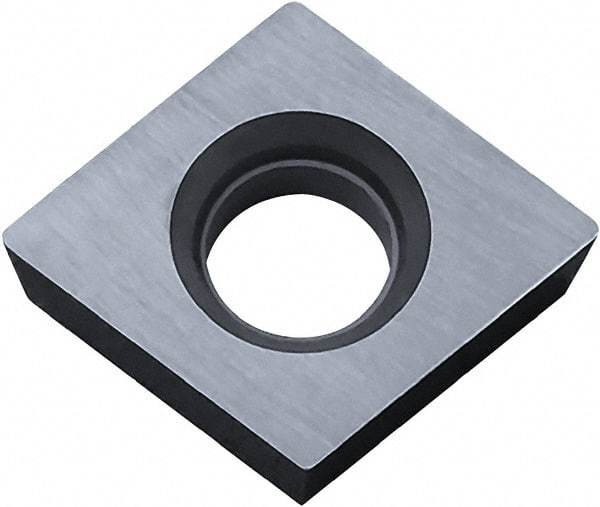

Kyocera - CPMB320.5 Grade KW10 Carbide Turning Insert - Uncoated, 80° Diamond, 3/8" Inscr Circle, 1/8" Thick, 0.008" Corner Radius
Item #: 50362334
Brand: Kyocera
Model #: 8817292
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMB |
| Insert Size | 320.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KW10 |
| Coating | Uncoated |
| Material Grade | K10 |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1770 |
| ISO Number | CPMB090302 |
| Rake | Positive |
| Relief Angle | 11 |
| Manufacturers Catalog Number | CPMB3205 KW10 |
| Primary Workpiece Material | N |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
