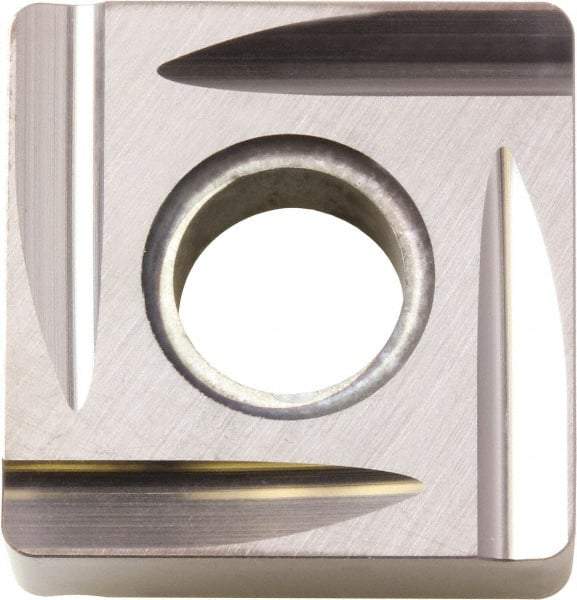

Kyocera - SNGG431 C Grade KW10 Carbide Turning Insert - Uncoated, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 50361625
Brand: Kyocera
Model #: 8813609
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNGG |
| Insert Size | 431 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KW10 |
| Coating | Uncoated |
| Material Grade | K10 |
| Chip Breaker | C |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | SNGG120404R-C |
| Rake | Negative |
| Rake Angle | 15 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | SNGG431RC KW10 |
| Primary Workpiece Material | N |
| Included Angle | 90 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Square |
