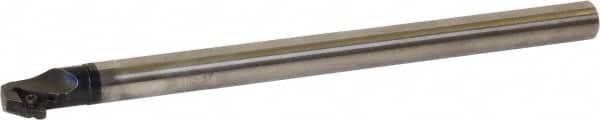

Kyocera - 30mm Min Bore Diam, 300mm OAL, 25mm Shank Diam, S-SDQC-A Indexable Boring Bar - 30mm Max Bore Depth, DCGT 325.., DCGW 325.., DCMT 325.., DCMW 325.. Insert, Screw Holding Method - Benchmark Tooling

Kyocera - 30mm Min Bore Diam, 300mm OAL, 25mm Shank Diam, S-SDQC-A Indexable Boring Bar - 30mm Max Bore Depth, DCGT 325.., DCGW 325.., DCMT 325.., DCMW 325.. Insert, Screw Holding Method


Item #: 50357797
Brand: Kyocera
Model #: 8829312
Exact Tooling IR#: 04

Product Specifications
Toolholder Style S-SDQC-A
Series Dynamic Bars
Minimum Bore Diameter (mm) 30.00
Minimum Bore Diameter (Decimal Inch) 1.1811
Hand of Holder Right Hand
Maximum Bore Depth (mm) 30.00
Maximum Bore Depth (Decimal Inch) 1.1811
Overall Length (mm) 300.00
Overall Length (Decimal Inch) 11.8110
Shank Diameter (mm) 25.00
Shank Diameter (Decimal Inch) 0.9843
Insert Compatibility DCGT 325..; DCGW 325..; DCMT 325..; DCMW 325..
Through Coolant Yes
Multi-Use Tool Yes
Multi-Use Application Copying
Number of Inserts Used on Toolholder 1
Insert Holding Method Screw
Rake Negative
Lead Angle 17.50
Center to Cutting Edge (mm) 16.90
Center to Cutting Edge (Decimal Inch) 0.6654
Insert Thickness (Inch) 5/32
Insert Thickness (Decimal Inch) 0.1563
Insert Inscribed Circle (Inch) 3/8
Insert Inscribed Circle (Decimal Inch) 0.3750
Rake Angle -4
Coolant Hole Diameter (mm) 6.00
Coolant Hole Diameter (Decimal Inch) 0.2362
Complete Insert Compatibility DCGT 325013MFR/L-U; DCGT 325013MR/L-F; DCGT 32501FR/L-U; DCGT 32501M; DCGT 32501MF; DCGT 32501R/L-F; DCGT 32502CK; DCGT 32502ER/L-U; DCGT 32502FR/L-U; DCGT 32502M; DCGT 32502M-CF; DCGT 32502M-CK; DCGT 32502MER/L-U; DCGT 32502MF; DCGT 32502MF-GF; DCGT 3250
Toolholder Material Carbide
$1,120.13

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
