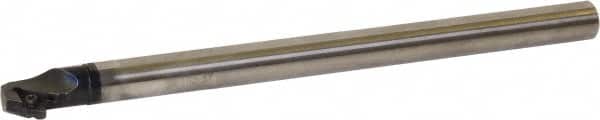

Kyocera - 16mm Min Bore Diam, 120mm OAL, 12mm Shank Diam, E-SDUC-A Indexable Boring Bar - 23mm Max Bore Depth, DCGT 215.., DCGW 215.., DCMT 215.., DCMW 215.. Insert, Screw Holding Method
Item #: 50357177
Brand: Kyocera
Model #: 8829287
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SDUC-A |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 23.00 |
| Maximum Bore Depth (Decimal Inch) | 0.9055 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | DCGT 215..; DCGW 215..; DCMT 215..; DCMW 215.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 9.70 |
| Center to Cutting Edge (Decimal Inch) | 0.3819 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | -5 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Complete Insert Compatibility | DCGT 215013MFR/L-U; DCGT 215013MR/L-F; DCGT 21501FR/L-U; DCGT 21501M; DCGT 21501MF; DCGT 21501MFR/L-U; DCGT 21501R/L-F; DCGT 21502CK; DCGT 21502ER/L-U; DCGT 21502FR/L-U; DCGT 21502M; DCGT 21502M-CF; DCGT 21502M-CK; DCGT 21502MER/L-U; DCGT 21502MF; DCGT 21 |
| Toolholder Material | Carbide |
