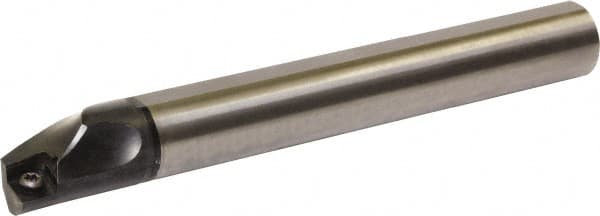

Kyocera - 16mm Min Bore Diam, 180mm OAL, 12mm Shank Diam, E-SCLP-A Indexable Boring Bar - 23mm Max Bore Depth, CP..0903.. Insert, Screw Holding Method
Item #: 50356773
Brand: Kyocera
Model #: 8838742
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SCLP-A |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 23.00 |
| Maximum Bore Depth (Decimal Inch) | 0.9055 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | CP..0903.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 8.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3150 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -5 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Complete Insert Compatibility | CPGB 090304S01035SET; CPGB 090304T00815; CPGB 090308T00815; CPMH 090301; CPMH 090301NE; CPMH 090302; CPMH 090302NE; CPMH 090304; CPMH 090304HQ; CPMH 090304NE; CPMH 090304R/L-Y; CPMH 090308; CPMH 090308HQ; CPMH 090308NE; CPMH 090308R/L-Y; CPMT 090304GP; CP |
| Toolholder Material | Carbide |
