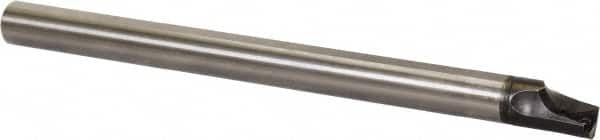

Kyocera - 25mm Min Bore Diam, 125mm OAL, 20mm Shank Diam, E(C)-STLB(P)-A Indexable Boring Bar - 32mm Max Bore Depth, TP.. 1603.. Insert, Screw Holding Method
Item #: 50356500
Brand: Kyocera
Model #: 8838785
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E(C)-STLB(P)-A |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 32.00 |
| Maximum Bore Depth (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | TP.. 1603.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 12.80 |
| Center to Cutting Edge (Decimal Inch) | 0.5039 |
| Insert Thickness (Inch) | 3/8 |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 1/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.1250 |
| Rake Angle | -0 |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
| Complete Insert Compatibility | TPGH 160302MR/L; TPGH 160302R/L; TPGH 160304MR/L; TPGH 160304MR/L-H; TPGH 160304R/L; TPGH 160304R/L-H; TPGH 160308MR/L; TPGH 160308MR/L-H; TPGH 160308R/L; TPGH 160308R/L-H; TPGR 160302R/L-B; TPGR 160304R/L-B; TPGR 160304R/L-C; TPGR 160308R/L-B; TPGR 16030 |
| Toolholder Material | Carbide |
