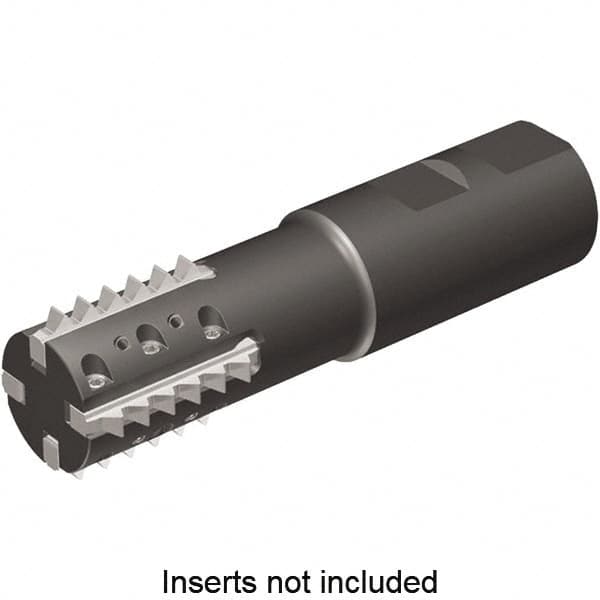

Kennametal - 1.42" Cut Diam, 1.69" Max Depth of Cut, 1-1/4" Shank Diam, Indexable Thread Mill - Insert Style TM41, 41mm Insert Size, 5 Inserts, Toolholder Style TM41, 4.13" OAL
Item #: 50341619
Brand: Kennametal
Model #: 5593180
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.4200 |
| Maximum Hole Depth (Decimal Inch) | 1.6900 |
| Insert Style | TM41 |
| Insert Size (mm) | 41.00 |
| Toolholder Style | TM41 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 4.1300 |
| Number of Threading Inserts | 5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw & Clamp |
| Number of Flutes | 5 |
| Neck Diameter (mm) | 42.90 |
