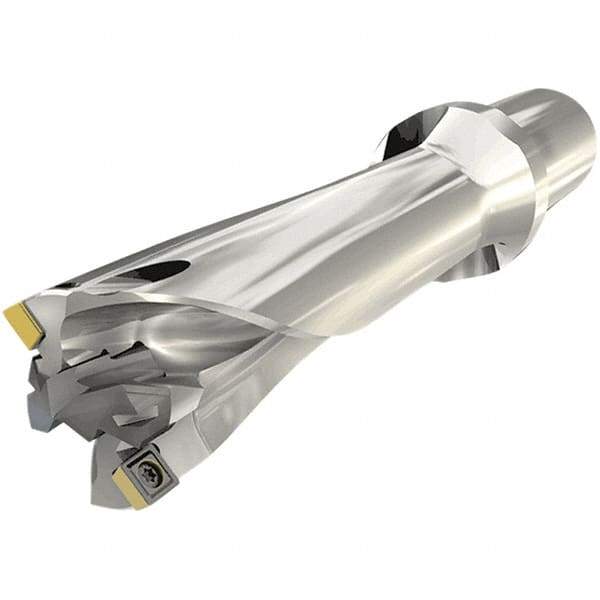

Iscar - 2" Max Diam, 5xD, 10" Max Drill Depth, 1-1/2" Shank Diam, 14.57" OAL, Replaceable Tip Drill - ICP, SOGT-W Insert, MNC Toolholder, Series CombiCham
Item #: 50317379
Brand: Iscar
Model #: 3260249
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CombiCham |
| Maximum Drill Diameter (Decimal Inch) | 2.0000 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Style | ICP; SOGT-W |
| Toolholder Style | MNC |
| Shank Type | Flat Shank |
| Tip Length (Decimal Inch) | 0.2460 |
| Flute Length (Decimal Inch) | 10.0000 |
| Body Length (Decimal Inch) | 11.9000 |
| Overall Length (Decimal Inch) | 14.5700 |
| Shank Length (Decimal Inch) | 2.6700 |
