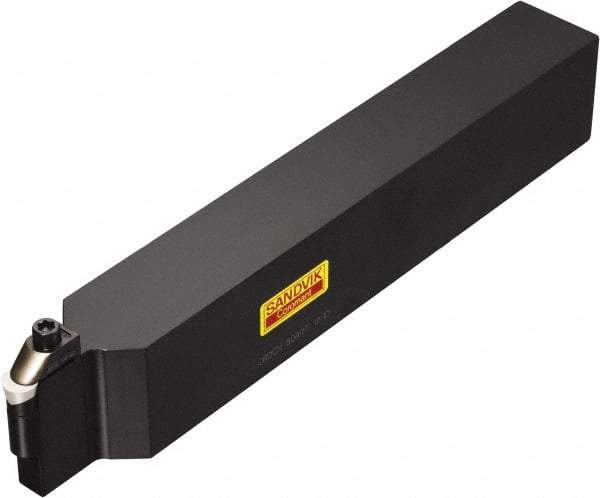

Sandvik Coromant - CRDC, Neutral Cut, 50mm Shank Height x 40mm Shank Width, Neutral Rake Indexable Turning Toolholder - 300mm OAL, RCGX 12 07 00 Insert Compatibility, Series T-Max
Item #: 50158641
Brand: Sandvik Coromant
Model #: 5726184
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CRDC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | T-Max |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Compatibility | RCGX 12 07 00 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 26.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0394 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Toolholder Material | Steel |
