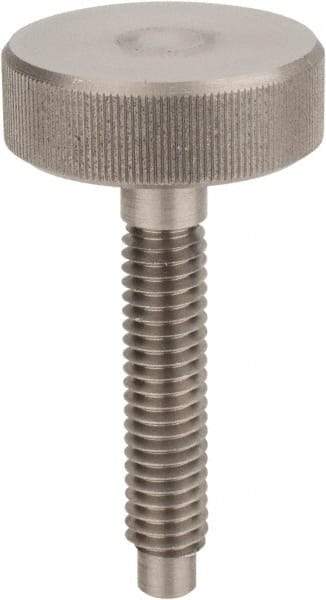

Morton Machine Works - M10x1.50 Knurled Shoulderless Dog Point Tip Grade 303 Stainless Steel Thumb Screw - 100mm OAL, 32mm Head Diam x 11mm Head Height
Item #: 50151091
Brand: Morton Machine Works
Model #: KHS-68SS
Exact Tooling IR#: 04
Features and Benefits
Knurled head types have a pattern of ridges that allow for easy gripping and tightening by hand. Knurled head types are common in applications requiring frequent fastening and unfastening.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Thread Size | M10x1.50 |
| Head Type | Knurled |
| Shoulder Type | Shoulderless |
| Tip Type | Dog Point |
| Material | Stainless Steel |
| Material Grade | 303 |
| Overall Length (mm) | 100.00 |
| Head Diameter (mm) | 32.00 |
| Head Height (mm) | 11.00 |
| Thread Standard | Metric Coarse |
| Head Color | Gray |
| Head Material | Stainless Steel |
| Tip Length (mm) | 4.00 |
| Tip Diameter (mm) | 7.00 |
| Tip Material | Stainless Steel |
