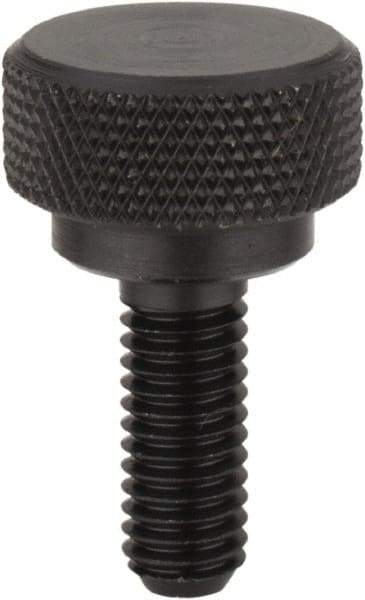

Morton Machine Works - 1/4-20 Knurled Shoulder Flat Tip Grade C-12L14 Steel Thumb Screw - 7/8" OAL, 3/8" Head Height
Item #: 50150713
Brand: Morton Machine Works
Model #: 3407
Exact Tooling IR#: 04
Features and Benefits
Knurled head types have a pattern of ridges that allow for easy gripping and tightening by hand. Knurled head types are common in applications requiring frequent fastening and unfastening.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size | 1/4-20 |
| Head Type | Knurled |
| Shoulder Type | Shoulder |
| Tip Type | Flat |
| Material | Steel |
| Material Grade | C-12L14 |
| Overall Length (Decimal Inch) | 0.8750 |
| Head Diameter (Decimal Inch) | 0.5000 |
| Head Height (Decimal Inch) | 0.3750 |
| Thread Standard | UNC |
| Head Color | Black |
| Head Material | Steel |
| Shoulder Length (Inch) | 1/8 |
| Shoulder Diameter (Inch) | 3/8 |
