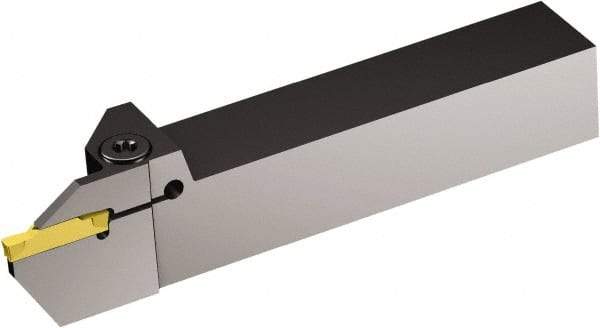

Sandvik Coromant - F123, Internal or External, Left Hand, 0.4" Max Depth of Cut, Indexable Grooving Tool Holder - N123F2-0250-0002-CM Insert Compatibility, 1" Shank Height, 1" Shank Width, 5" OAL
Item #: 50117621
Brand: Sandvik Coromant
Model #: 5732608
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4000 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | F123 |
| Insert Compatibility | N123F2-0250-0002-CM |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Profiling |
| Insert Seat Size | F |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5732608 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123F2 0250-0002-CM |
| Shank Diameter (Decimal Inch) | 1.0000 |
