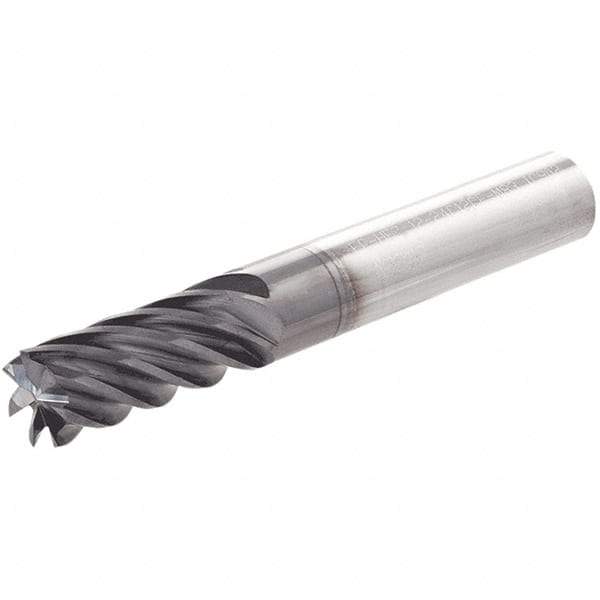

Iscar - 7 Flute Solid Carbide Roughing & Finishing Corner Radius End Mill - TiAlN Finish, Straight Shank, 37° Helix, Non-Centercutting, Regular Length
Item #: 50101856
Brand: Iscar
Model #: 5623375
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 3.00 |
| Number of Flutes | 7 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Length of Cut (mm) | 16.0000 |
| Length of Cut (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 8 |
| Overall Length (mm) | 63 |
| Centercutting | Non-Center Cutting |
| Extended Reach | NonExtendedReach |
| Chipbreaker | No |
| Shank Type | Straight Shank |
| Helix Angle | 37 |
| Material Grade | Ultra Fine Grain |
| Single or Double End | Single |
| Length Type | Regular |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | e8 |
| Shank Diameter Tolerance (mm) | h6 |
