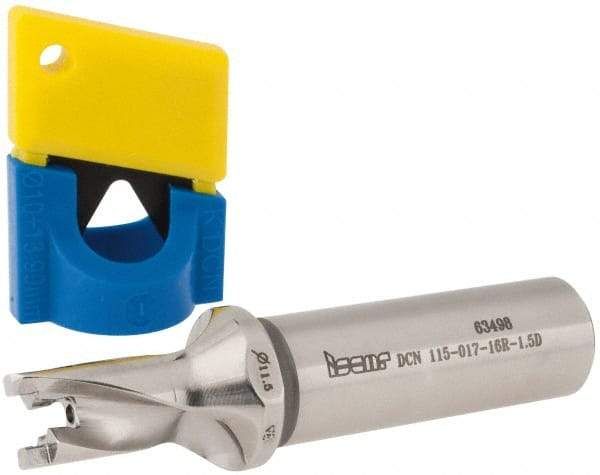

Iscar - 11.5mm to 15/32" Diam, 1.5xD, 17mm Max Depth, 16mm Shank Diam, 81.9mm OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 50100148 Toolholder, Series SumoCham
Item #: 50100148
Brand: Iscar
Model #: 3203344
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 11.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4528 |
| Maximum Drill Diameter (mm) | 11.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.4685 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.6693 |
| Maximum Drill Depth (mm) | 17.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN R |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 33.90 |
| Body Length (Decimal Inch) | 1.3347 |
| Overall Length (mm) | 81.90 |
| Overall Length (Decimal Inch) | 3.2244 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
