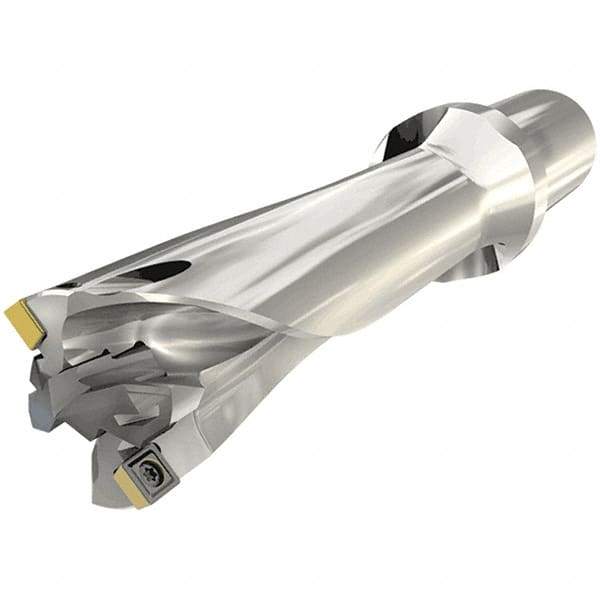

Iscar - 40mm Diam, 5xD, 200mm Max Depth, 40mm Shank Diam, 308mm OAL, Replaceable Tip Drill - HCP-IQ, ICP, SOGT-W, SOGX-W Insert, MNC Toolholder, Series Combicham
Item #: 50100114
Brand: Iscar
Model #: 3202875
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CombiCham |
| Maximum Drill Diameter (mm) | 40.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.5748 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 7.8740 |
| Maximum Drill Depth (mm) | 200.00 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Style | HCP-IQ; ICP; SOGT-W; SOGX-W |
| Toolholder Style | MNC |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 240.00 |
| Body Length (Decimal Inch) | 9.4488 |
| Overall Length (mm) | 308.00 |
| Overall Length (Decimal Inch) | 12.1260 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
