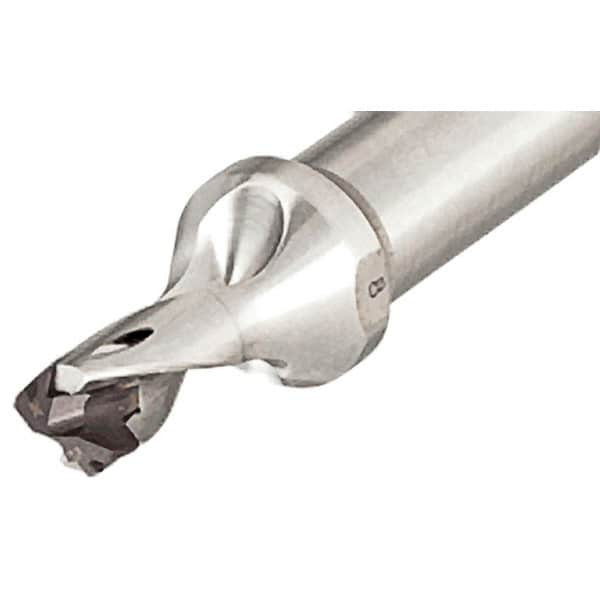

Iscar - 17/32" to 13.9mm Diam, 1.5xD, 20mm Max Depth, 16mm Shank Diam, 85.9mm OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 50099969 Toolholder, Series SumoCham - Benchmark Tooling

Iscar - 17/32" to 13.9mm Diam, 1.5xD, 20mm Max Depth, 16mm Shank Diam, 85.9mm OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 50099969 Toolholder, Series SumoCham


Item #: 50099969
Brand: Iscar
Model #: 3203352
Exact Tooling IR#: 04

Features and Benefits

Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
Product Specifications
Series SumoCham
Minimum Drill Diameter (mm) 13.50
Minimum Drill Diameter (Decimal Inch) 0.5315
Maximum Drill Diameter (mm) 13.90
Maximum Drill Diameter (Decimal Inch) 0.5472
Drill Depth by Diameter Ratio 1.5xD
Maximum Drill Depth (Decimal Inch) 0.7874
Maximum Drill Depth (mm) 20.00
Shank Diameter (mm) 16.00
Shank Diameter (Decimal Inch) 0.6299
Insert Style FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M
Toolholder Style DCN R
Through Coolant Through Coolant
Shank Type Straight Shank
Body Length (mm) 37.90
Body Length (Decimal Inch) 1.4921
Overall Length (mm) 85.90
Overall Length (Decimal Inch) 3.3819
Shank Length (mm) 48.00
Shank Length (Decimal Inch) 1.8898
$203.57
