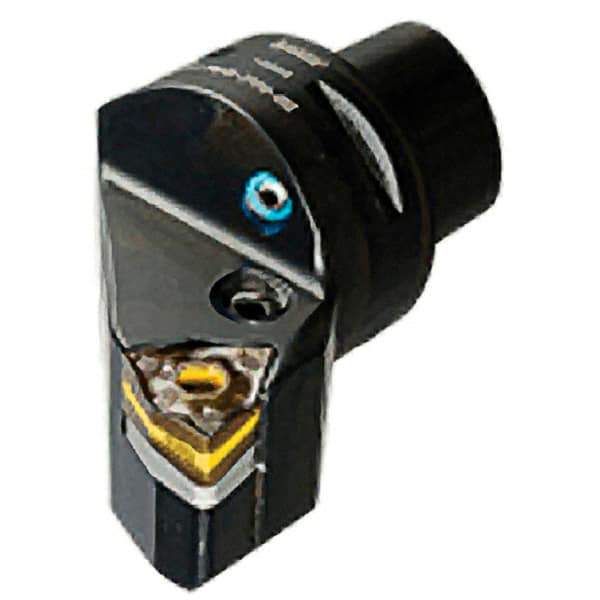

Iscar - Left Hand Cut, Size C5, Various Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 25mm Ctr to Cutting Edge, 60mm Head Length, Through Coolant, Series CAMFIX & Heliturn LD
Item #: 50099852
Brand: Iscar
Model #: 3691450
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | CAMFIX; Heliturn LD |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 60.00 |
| Head Length/Projection (Decimal Inch) | 2.3622 |
| Insert Style | WNMA/WNMA-WG; WNMG-F3M; WNMG-F3P; WNMG-GN; WNMG-M3M; WNMG-M3P; WNMG-NF; WNMG-PP; WNMG-TF; WNMG-WF; WNMG-WG; WNMX-M3/4PW; WNMX-M4MW |
| Internal or External | External |
| Center to Cutting Edge (mm) | 25.00 |
| Center to Cutting Edge (Decimal Inch) | 0.9843 |
| Insert Holding Method | Lever Lock |
| Through Coolant | Through Coolant |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | WNMA 3-1; WNMA 3-2; WNMA 3-3; WNMA 331; WNMA 332; WNMA 432; WNMA 432-WG; WNMA 433; WNMA 434; WNMA 644; WNMG 3-.004-NF; WNMG 3-0-NF; WNMG 3-1-GN; WNMG 3-1-M3P; WNMG 3-1-NF; WNMG 3-1-PP; WNMG 3-1-TF; WNMG 3-1-WG; WNMG 3-2-GN; WNMG 3-2-M3P; WNMG 3-2-NF; WNMG |
