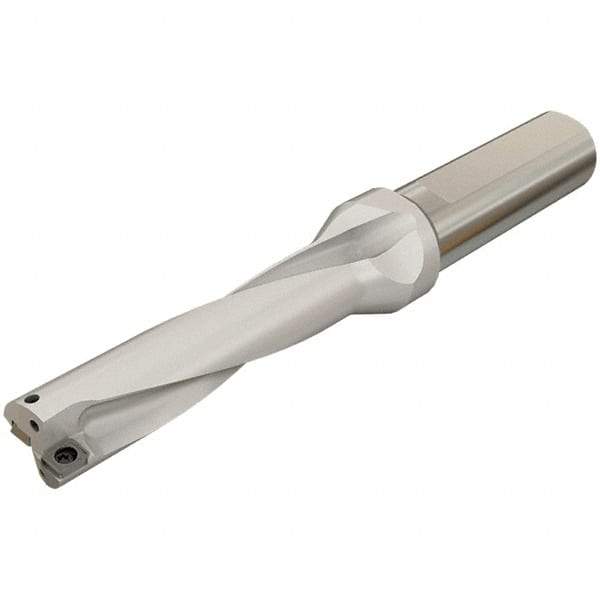

Iscar - 212mm Max Drill Depth, 4xD, 55.5mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Whistle Notch Shank
Item #: 50099290
Brand: Iscar
Model #: 3201485
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 55.50 |
| Drill Diameter (Decimal Inch) | 2.1850 |
| Maximum Drill Depth (mm) | 212.00 |
| Maximum Drill Depth (Decimal Inch) | 8.3465 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 315.00 |
| Overall Length/Projection (Decimal Inch) | 12.4016 |
| Insert Compatibility | AOMT 040204-90DT; SOGX 050204-AL; SOGX 060304-AL; SOGX 070305-AL; SOMT 060204-DT; SOMT 09T306-DT; SOMT 09T306-GF; SOMT 09T306-HD; SOMT 100408-DT; SOMT 110408-DT; SOMT 120408-DT; SOMT 120408-GF; SOMT 120408-HD; SOMT 140512-DT; SOMT 160512-DT; SOMT 160512-G |
| Body Length (Decimal Inch) | 9.7244 |
| Body Length (mm) | 247.00 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
| Collar Diameter (mm) | 60.00 |
| Collar Diameter (Decimal Inch) | 2.3622 |
| Series | DR-TWIST |
