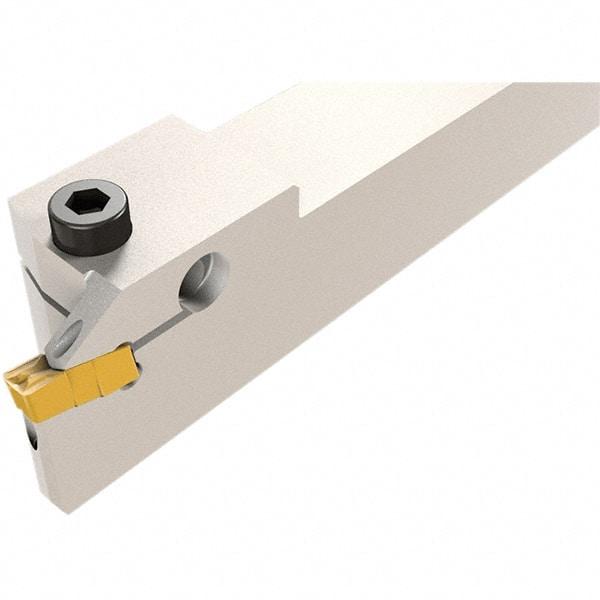

Iscar - GHD, External, Left Hand, 10mm Max Depth of Cut, 4 to 5mm Groove Width, Indexable Grooving Tool Holder - GI.., GPV, TIP Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 120mm OAL, Through Coolant
Item #: 50098839
Brand: Iscar
Model #: 2801939
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Toolholder Style | GHD |
| Insert Compatibility | GI..; GPV; TIP |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | Cut Grip; JetHPLine |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Self Clamp |
| Maximum Hole Depth (Decimal Inch) | 1.1417 |
| Back of Bar to Cutting Edge (Decimal Inch) | 18.4000 |
| Head Length (mm) | 29.00 |
| Head Length (Decimal Inch) | 1.1417 |
| Full Radius Insert | Yes |
| Shank Length (mm) | 91.00 |
| Shank Length (Decimal Inch) | 3.5827 |
| Complete Insert Compatibility | GIA 3.00K-0.40; GIA 4.00K-0.40; GIA 4.00K-0.80; GIA 5.00K-0.80; GIA 6.00K-0.80; GIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.40; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.00E-2.00; GIF 4.23-0.10; GIF 4.45-0.15; GIF 4.78-0.55; GIF 4. |
