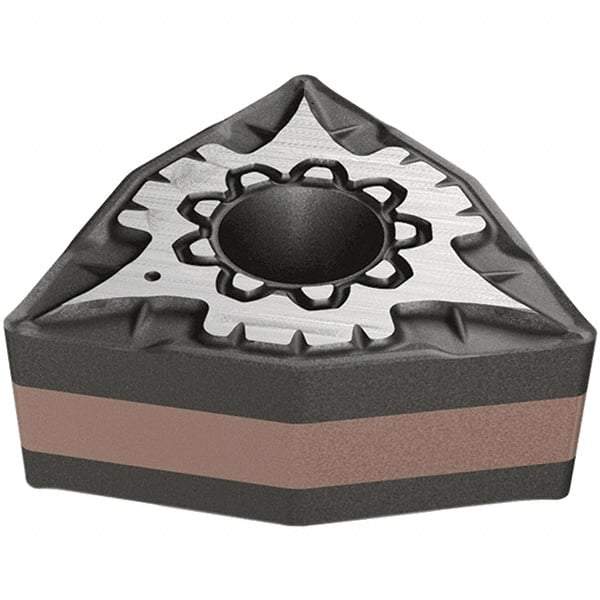

Iscar - WNMG332 F3M Grade IC6025 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 50098599
Brand: Iscar
Model #: 5567830
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 332 |
| Material | Carbide |
| Length (mm) | 6.52 |
| Length (Decimal Inch) | 0.2567 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | IC6025 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | F3M |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | WNMG 060408-F3M |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Insert Holding Method | Pin & Clamp |
| MultiUseTool | No |
| Shape | Trigon |
