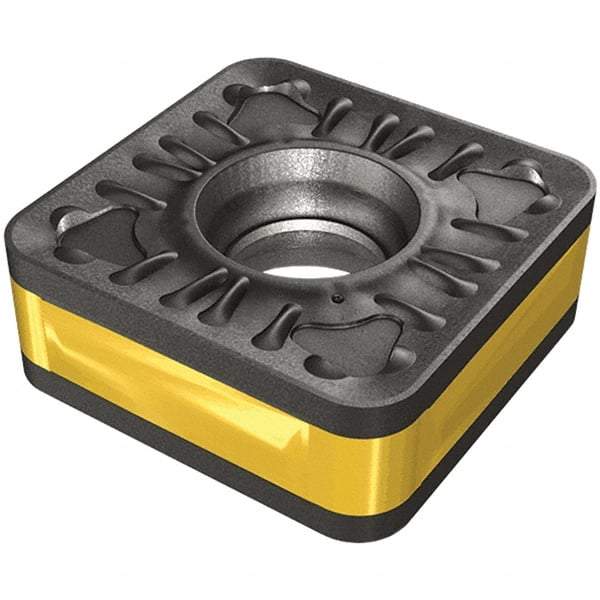

Iscar - SOMG190624 R3P-IQ Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 3/32" Corner Radius
Item #: 50098532
Brand: Iscar
Model #: 5567095
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOMG |
| Insert Size | 190624 |
| Material | Carbide |
| Length (mm) | 19.05 |
| Length (Decimal Inch) | 0.7500 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | R3P-IQ |
| Coating Process | CVD |
| Manufacturers Catalog Number | SOMG 190624-R3P-IQ |
| Included Angle | 90 |
| Series | DoveIQTurn |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Insert Holding Method | Lever Lock |
| MultiUseTool | No |
| Shape | Square |
