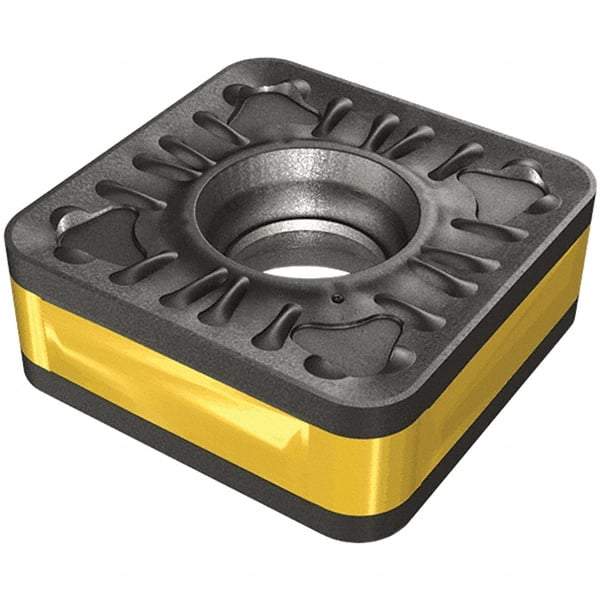

Iscar - SOMG150616 R3P-IQ Grade IC8150 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Square, 5/8" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 50098342
Brand: Iscar
Model #: 5567075
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOMG |
| Insert Size | 150616 |
| Material | Carbide |
| Length (mm) | 15.88 |
| Length (Decimal Inch) | 0.6252 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | R3P-IQ |
| Coating Process | CVD |
| Manufacturers Catalog Number | SOMG 150616-R3P-IQ |
| Included Angle | 90 |
| Series | DoveIQTurn |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Insert Holding Method | Lever Lock |
| MultiUseTool | No |
| Shape | Square |
