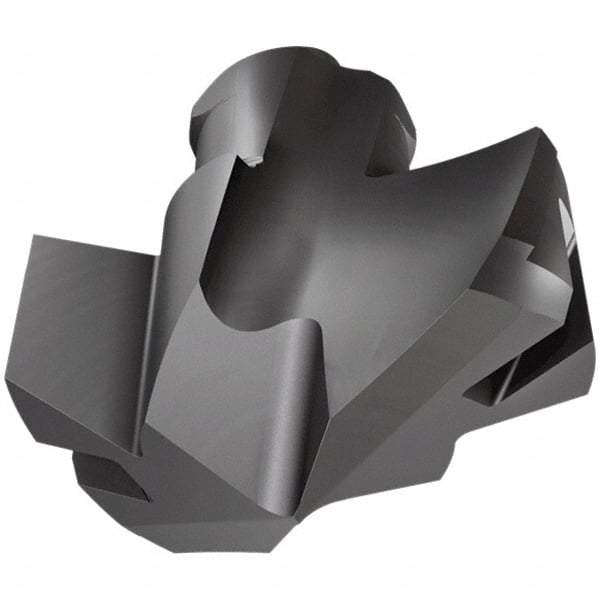

Iscar - Series ICK, 24.99mm Diam Grade IC907 Replaceable Drill Tip - Carbide, TiAlN/TiN Finish, 25 Seat Size
Item #: 50097526
Brand: Iscar
Model #: 5567264
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Diameter (mm) | 24.99 |
| Diameter (Decimal Inch) | 0.9840 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC907 |
| Series | ICK |
| Coating | TiAlN/TiN |
| Insert Seat Size | 25.00 |
| Through Coolant | NonThrough Coolant |
| Coating Process | PVD |
| Height (mm) | 14.50 |
| Height (Decimal Inch) | 0.5710 |
