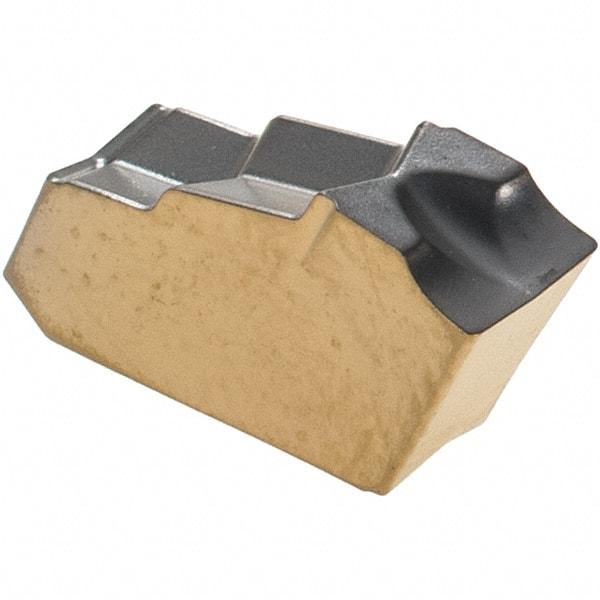

Iscar - GFN4 J IC808 Grade, 0.1575" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0098" Cnr Rad, TiN/TiAlN Coated, Single End
Item #: 50096973
Brand: Iscar
Model #: 6003377
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFN |
| Insert Size | 4 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiN/TiAlN |
| Series | Self-Grip |
| Chipbreaker | J |
| Full Radius | No |
| Multi-Use Application | Grooving |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0098 |
| Corner Radius (mm) | 0.25 |
| Insert Holding Method | Self Grip |
| Width Tolerance | 0.04 (mm) |
| Manufacturers Catalog Number | GFN 4J-N |
