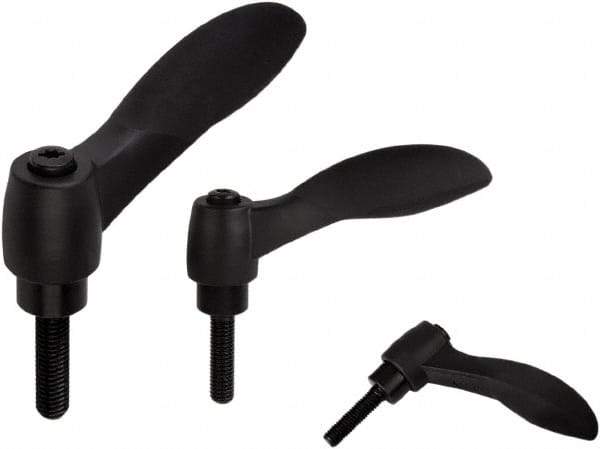

KIPP - 1/4-20, Fiberglass Reinforced Plastic & Thermoplastic SEBS Threaded Stud Adjustable Clamping Handle - 48.1mm OAL, 33.5mm High
Item #: 50095801
Brand: KIPP
Model #: K0125.1A201X15
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | 1/4-20 |
| Overall Length (mm) | 48.10 |
| Handle Material | Fiberglass-Reinforced Plastic & Thermoplastic SEBS |
| Components Finish/Coating | Black Oxide |
| Components Material | Steel; Zinc (Toothed Wheel) |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 1.5787 |
| Handle Arm Style | Cockatoo |
| Body Height (Decimal Inch) | 0.9646 |
| Body Diameter (mm) | 16.00 |
| Base Height (Decimal Inch) | 0.1575 |
| Base Diameter (Decimal Inch) | 0.3937 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 24.50 |
| Body Diameter (Decimal Inch) | 0.6299 |
| Base Height (mm) | 4.00 |
| Base Diameter (mm) | 10.00 |
| Thread Length (Decimal Inch) | 0.5906 |
| Overall Height (mm) | 33.50 |
| Overall Height (Decimal Inch) | 1.3189 |
| Thread Length (mm) | 15.00 |
| Handle Radius Length (mm) | 40.10 |
| Handle Color | Gray |
