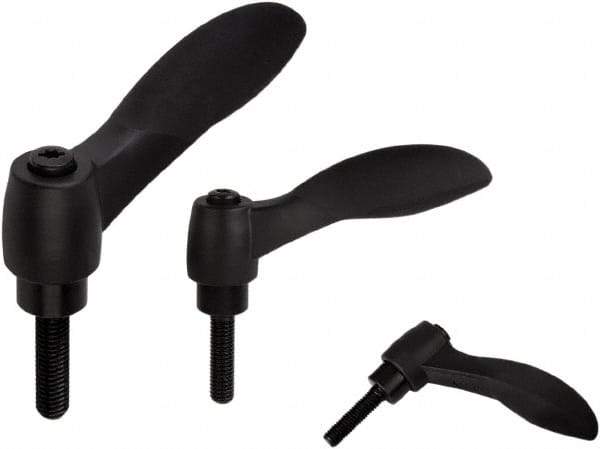

KIPP - 3/8-16, Fiberglass Reinforced Plastic & Thermoplastic SEBS Threaded Stud Adjustable Clamping Handle - 74.4mm OAL, 45.2mm High
Item #: 50095397
Brand: KIPP
Model #: K0125.2A401X20
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | 3/8-16 |
| Overall Length (mm) | 74.40 |
| Handle Material | Fiberglass-Reinforced Plastic & Thermoplastic SEBS |
| Components Finish/Coating | Black Oxide |
| Components Material | Steel; Zinc (Toothed Wheel) |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 2.5551 |
| Handle Arm Style | Cockatoo |
| Body Height (Decimal Inch) | 1.1221 |
| Body Diameter (mm) | 19.00 |
| Base Height (Decimal Inch) | 0.2559 |
| Base Diameter (Decimal Inch) | 0.5315 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 28.50 |
| Body Diameter (Decimal Inch) | 0.7480 |
| Base Height (mm) | 6.50 |
| Base Diameter (mm) | 13.50 |
| Thread Length (Decimal Inch) | 0.7874 |
| Overall Height (mm) | 45.20 |
| Overall Height (Decimal Inch) | 1.7795 |
| Thread Length (mm) | 20.00 |
| Handle Radius Length (mm) | 64.90 |
| Handle Color | Gray |
