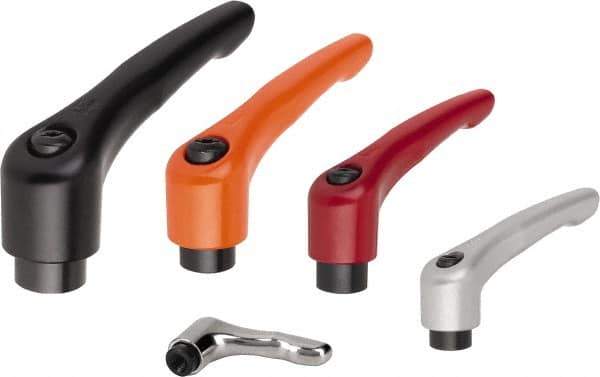

KIPP - M6, Zinc Threaded Hole Adjustable Clamping Handle - 47mm OAL, 34mm High
Item #: 50083740
Brand: KIPP
Model #: K0122.1063
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Hole |
| Thread Size | M6 |
| Overall Length (mm) | 47.00 |
| Handle Material | Zinc |
| Components Finish/Coating | Black Oxide |
| Handle Finish/Coating | Powder Coated |
| Components Material | Steel |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 1.5748 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 0.9646 |
| Body Diameter (mm) | 14.00 |
| Base Height (Decimal Inch) | 0.1575 |
| Base Diameter (Decimal Inch) | 0.3937 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 24.50 |
| Body Diameter (Decimal Inch) | 0.5512 |
| Base Height (mm) | 4.00 |
| Base Diameter (mm) | 10.00 |
| Thread Length (Decimal Inch) | 0.3543 |
| Overall Height (mm) | 34.00 |
| Overall Height (Decimal Inch) | 1.3386 |
| Thread Length (mm) | 9.00 |
| Handle Radius Length (mm) | 40.00 |
| Handle Color | Silver |
