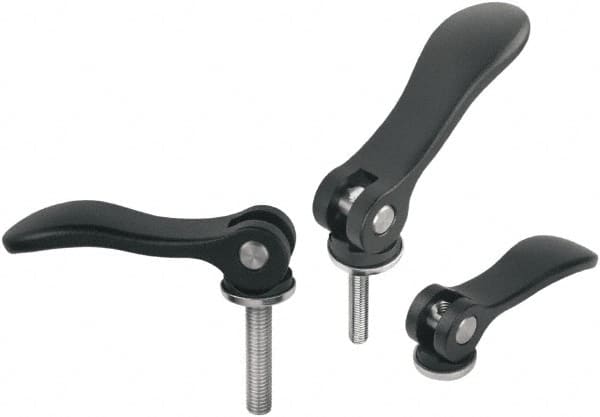

KIPP - M3, Aluminum Threaded Stud Adjustable Clamping Handle - 41.7mm OAL, 13mm High
Item #: 50083385
Brand: KIPP
Model #: K0005.950110315
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M3 |
| Overall Length (mm) | 41.70 |
| Handle Material | Aluminum |
| Components Finish/Coating | Black Oxide (Washer); Blue Chromated (Threaded Stud/Washer); Natural (Hinge Pin) |
| Handle Finish/Coating | Powder Coated |
| Components Material | Fiberglass-Reinforced Plastic (Washer); Stainless Steel (Hinge Pin); Steel (Threaded Stud/Washer) |
| Handle Type | Adjustable Cam Lever |
| Handle Radius Length (Decimal Inch) | 1.4252 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 0.5118 |
| Base Diameter (Decimal Inch) | 0.4724 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 13.00 |
| Base Diameter (mm) | 12.00 |
| Thread Length (Decimal Inch) | 0.3937 |
| Overall Height (mm) | 13.00 |
| Overall Height (Decimal Inch) | 0.5118 |
| Thread Length (mm) | 10.00 |
| Handle Radius Length (mm) | 36.20 |
| Handle Color | Black |
