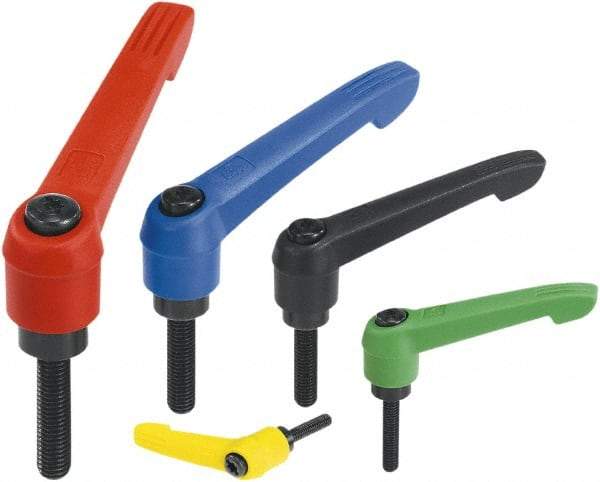

KIPP - M10, Fiberglass Reinforced Plastic Threaded Stud Adjustable Clamping Handle - 91.5mm OAL, 58mm High
Item #: 50076520
Brand: KIPP
Model #: K0269.31016X30
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | M10 |
| Overall Length (mm) | 91.50 |
| Handle Material | Fiberglass-Reinforced Plastic |
| Components Finish/Coating | Black Oxide |
| Components Material | Steel; Zinc (Toothed Wheel) |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 3.1496 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 1.4567 |
| Body Diameter (mm) | 23.00 |
| Base Height (Decimal Inch) | 0.3937 |
| Base Diameter (Decimal Inch) | 0.6299 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 37.00 |
| Body Diameter (Decimal Inch) | 0.9055 |
| Base Height (mm) | 10.00 |
| Base Diameter (mm) | 16.00 |
| Thread Length (Decimal Inch) | 1.1811 |
| Overall Height (mm) | 58.00 |
| Overall Height (Decimal Inch) | 2.2835 |
| Thread Length (mm) | 30.00 |
| Handle Radius Length (mm) | 80.00 |
| Handle Color | Yellow |
