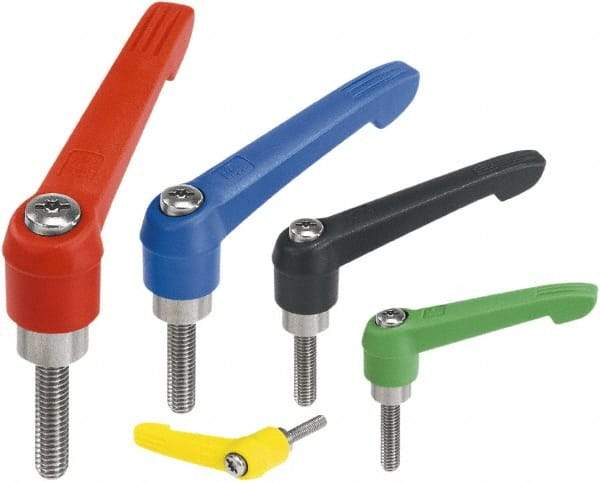

KIPP - #10-32, Fiberglass Reinforced Plastic Threaded Stud Adjustable Clamping Handle - 47mm OAL, 33.5mm High
Item #: 50071406
Brand: KIPP
Model #: K0270.1A12X15
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | #10-32 |
| Overall Length (mm) | 47.00 |
| Handle Material | Fiberglass-Reinforced Plastic |
| Components Finish/Coating | Natural |
| Components Material | Stainless Steel; Zinc (Toothed Wheel) |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 1.5748 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 0.9646 |
| Body Diameter (mm) | 14.50 |
| Base Height (Decimal Inch) | 0.1575 |
| Base Diameter (Decimal Inch) | 0.3937 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 24.50 |
| Body Diameter (Decimal Inch) | 0.5709 |
| Base Height (mm) | 4.00 |
| Base Diameter (mm) | 10.00 |
| Thread Length (Decimal Inch) | 0.5906 |
| Overall Height (mm) | 33.50 |
| Overall Height (Decimal Inch) | 1.3189 |
| Thread Length (mm) | 15.00 |
| Handle Radius Length (mm) | 40.00 |
| Handle Color | Orange |
