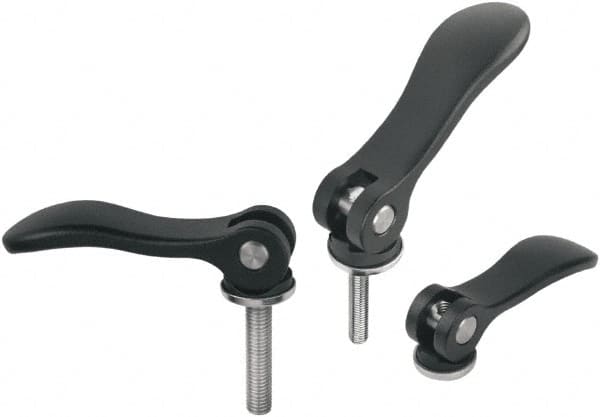

KIPP - #10-32, Aluminum Threaded Stud Adjustable Clamping Handle - 59mm OAL, 17mm High
Item #: 50068642
Brand: KIPP
Model #: K0005.05111A150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Stud |
| Thread Size | #10-32 |
| Overall Length (mm) | 59.00 |
| Handle Material | Aluminum |
| Components Finish/Coating | Black Oxide (Washer); Natural (Hinge Pin/Threaded Stud/Washer) |
| Handle Finish/Coating | Powder Coated |
| Components Material | Fiberglass-Reinforced Plastic (Washer); Stainless Steel |
| Handle Type | Adjustable Cam Lever |
| Handle Radius Length (Decimal Inch) | 2.0591 |
| Handle Arm Style | Modern Design / Teardrop End |
| Body Height (Decimal Inch) | 0.6693 |
| Base Diameter (Decimal Inch) | 0.6102 |
| Handle Arm Angle | Angled |
| Body Height (mm) | 17.00 |
| Base Diameter (mm) | 15.50 |
| Thread Length (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 17.00 |
| Overall Height (Decimal Inch) | 0.6693 |
| Thread Length (mm) | 50.00 |
| Handle Radius Length (mm) | 52.30 |
| Handle Color | Black |
