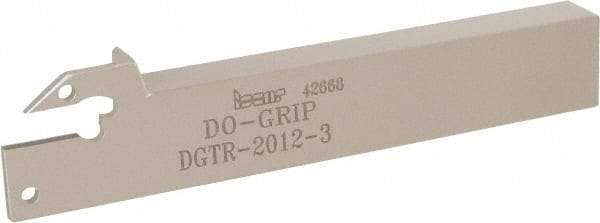

Iscar - External Thread, 1.378" Max Depth of Cut, 3mm Min Groove Width, 125mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 12mm Shank Width, DGN/DGR/GRIP Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 50068022
Brand: Iscar
Model #: 2301258
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 35.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3780 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1252 |
| Maximum Groove Width (mm) | 3.18 |
| Overall Length (mm) | 125.00 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DGN; DGR; GRIP |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Self Clamp |
| Head Length (mm) | 29.00 |
| Head Length (Decimal Inch) | 1.1417 |
| Manufacturers Catalog Number | DGTR 2012-3 |
| Complete Insert Compatibility | DGL 1001J-8D; DGL 1400JS-15D; DGL 1402J-8D; DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGL 3102J-6D; DGL 4003C-4D; DGL 4003J-4D; DGL 5003C-4D; DGL 5003J-4D; DGL 630 |
