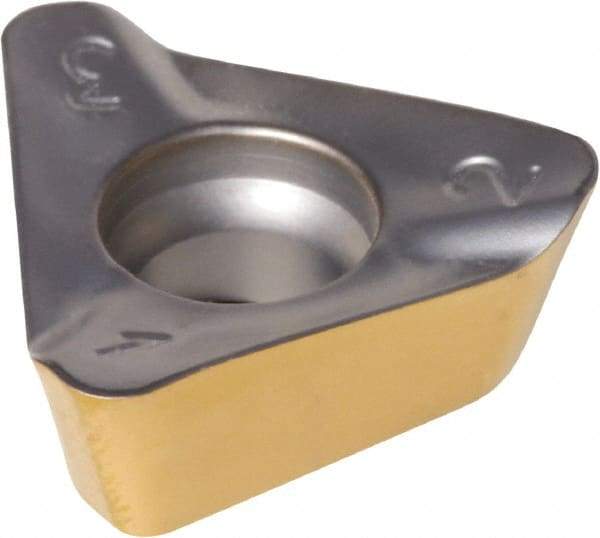

Iscar - HM390 TDKT150516 PDR Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 0.2303" Thick, 0.4488" Inscribed Circle, 1.6mm Corner Radius
Item #: 50067719
Brand: Iscar
Model #: 5666724
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TDKT |
| Insert Size | 150516 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Length (Decimal Inch) | 0.6457 |
| Inscribed Circle (Decimal Inch) | 0.4488 |
| Thickness (Decimal Inch) | 0.2303 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PDR |
| Maximum Depth of Cut (mm) | 12.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4921 |
| Manufacturers Catalog Number | HM390 TDKT 150516-PDR |
