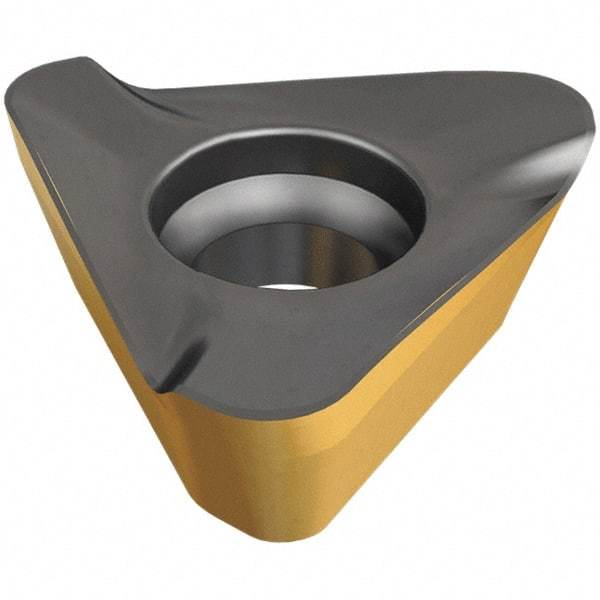

Iscar - HM390 TDKT150540 PDR Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.2264" Thick, 0.4488" Inscribed Circle, 4mm Corner Radius
Item #: 50067677
Brand: Iscar
Model #: 5666734
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TDKT |
| Insert Size | 150540 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Length (Decimal Inch) | 0.5610 |
| Inscribed Circle (Decimal Inch) | 0.4488 |
| Thickness (Decimal Inch) | 0.2264 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Corner Radius (mm) | 4.00 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PDR |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Manufacturers Catalog Number | HM390 TDKT 150540-PDR |
