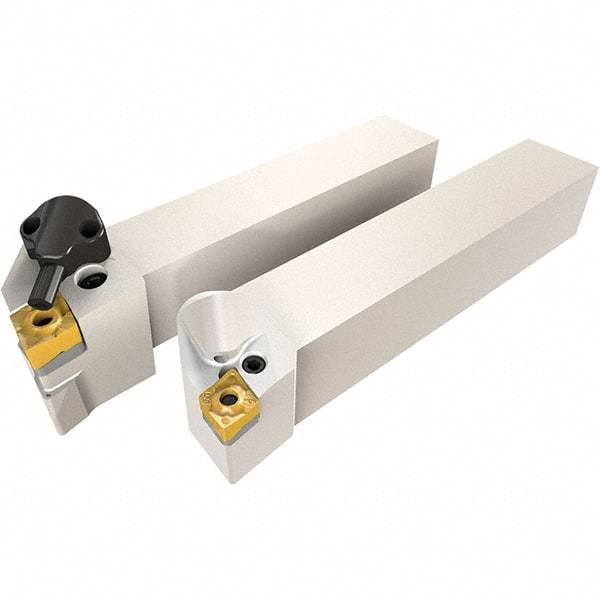

Iscar - PCLN, Left Hand Cut, 1-1/4" Shank Height x 1-1/4" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, Multiple Insert Compatibility, Series Heliturn LD, JetHPLine
Item #: 50067198
Brand: Iscar
Model #: 3603496
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PCLN |
| Rake | Negative |
| Series | Heliturn LD; JetHPLine |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CNMG 331; CNMG 332; CNMG 431; CNMG 432; CNMG 433; CNMG 434; CNMG 542; CNMG 543; CNMG 544; CNMG 642; CNMX 341; CNMX 342; CNMX 451; CNMX 452; CNMX 453; CNMX 454; CNMX 553; CNMX 554 |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 1.3000 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
