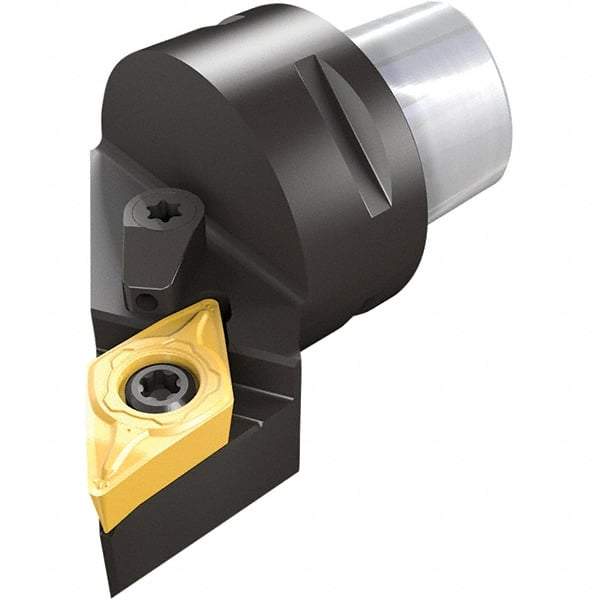

Iscar - Right Hand Cut, Size C4, Various Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 50mm Head Length, Through Coolant, Series CAMFIX, Heliturn LD, JetHPLine
Item #: 50066877
Brand: Iscar
Model #: 3603578
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CAMFIX; Heliturn LD; JetHPLine |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 50.00 |
| Head Length/Projection (Decimal Inch) | 1.9685 |
| Insert Style | CNMG-F3M; CNMG-F3P; CNMG-M3M; CNMG-M3P; CNMX-M3/4PW; CNMX-M4MW |
| Internal or External | External |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Lever Lock |
| Through Coolant | Through Coolant |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | CNMG 331-F3M; CNMG 331-F3P; CNMG 331-M3M; CNMG 331-M3P; CNMG 332-F3M; CNMG 332-F3P; CNMG 332-M3M; CNMG 332-M3P; CNMG 431-F3M; CNMG 431-F3P; CNMG 431-M3P; CNMG 432-F3M; CNMG 432-F3P; CNMG 432-M3M; CNMG 432-M3P; CNMG 433-F3M; CNMG 433-F3P; CNMG 433-M3M; CNM |
